Stable and unstable nuclei
Inside a nucleus the strong nuclear force attracts nucleons out to about 3 fm, and closer than about 0.5 fm it becomes repulsive. Where it cannot balance the electrostatic repulsion between protons, the nucleus decays by alpha emission; a nucleus with too many neutrons decays by beta-minus emission. The continuous beta energy spectrum is why the antineutrino was proposed.
Choose your exam board to show the notes and questions relevant to your specification. You can change this setting at any time, and content for other boards remains available.
Builds on Constituents of the atom.
IN THIS TOPIC
- Explain the role of the strong nuclear force, including its attractive and repulsive ranges.
- Write balanced equations for alpha and beta-minus decay.
- Explain why the neutrino was hypothesised from the beta-decay energy spectrum.
COMMON MISCONCEPTION
Positive charges can never stick together.

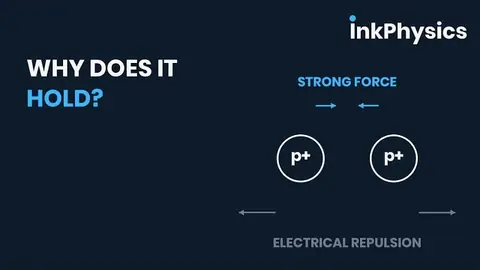

Protons do repel electrically, but within about 3 fm the strong nuclear force is attractive and overpowers that repulsion, holding the nucleons of a nucleus together.
The strong nuclear force
At separations of a few femtometres, the strong nuclear force provides an attraction that exceeds the electrostatic repulsion between protons. It acts between nucleons, protons and neutrons alike, and it is what allows a nucleus of mutually repelling protons to hold together.
Its defining feature is its range. The attraction acts between about 0.5 fm and about 3 fm and is negligible beyond, so the strong force has no effect at everyday distances. Closer than about 0.5 fm it becomes repulsive, which is what stops a nucleus collapsing. Nucleons settle at a separation between the two limits, where the attraction and the short-range repulsion balance.
Alpha decay
Some nuclei, mostly very large ones, are unstable and rearrange themselves. In alpha decay the nucleus emits an alpha particle, which is a helium-4 nucleus, two protons and two neutrons in one tightly bound package. A falls by 4, Z falls by 2, and a new element results. Uranium-238 gives the standard example.
238U → 234Th + 4He, with the proton numbers balancing as 92 = 90 + 2.
Both numbers must balance across the arrow, always, because nucleons are conserved and so is charge.
Beta decay, and the particle it demanded
In beta-minus decay a neutron inside the nucleus becomes a proton, emitting a fast electron, the beta particle, along with a second and almost undetectable particle, the electron antineutrino, written as ν with a bar over it.
So A stays fixed while Z rises by one. Carbon-14 dating runs on exactly this decay, 14C → 14N + e− + an electron antineutrino, with 6 = 7 + (−1) + 0 balancing the charge.
The antineutrino was hypothesised before it was detected, to rescue conservation of energy. Each decay releases a fixed total energy, so an electron leaving alone would always carry the same amount. Measured beta electrons do nothing of the kind. They show a continuous spectrum, from almost nothing up to a maximum. Either energy conservation fails, or an undetected particle carries the variable remainder. Pauli proposed the particle in 1930; the neutrino was detected experimentally in 1956. In beta decay the antineutrino carries energy and momentum so that both are conserved.
WORKED EXAMPLE
Writing a beta-minus equation
Carbon-14 (Z = 6) undergoes β− decay. Write the full equation and check that it balances.
β− turns a neutron into a proton, so A stays put, Z rises by one, and the electron leaves with an electron antineutrino.
14C → 14N + e− + e, with nitrogen at Z = 7.
Now check both totals. Nucleons, 14 = 14 + 0 + 0. Charge, 6 = 7 + (−1) + 0. The antineutrino carries the energy the electron does not, which is how it was predicted in the first place.
GUIDED PRACTICE
Thorium takes its turn
Thorium-234 (Z = 90) undergoes β− decay to protactinium (Pa). Write the equation and check both balances.
Show the working
234Th → 234Pa + e− + e, with Pa at Z = 91.
Nucleons, 234 = 234 + 0 + 0. Charge, 90 = 91 − 1 + 0. The daughter has moved one place right in the periodic table while its mass number is unchanged, and that pairing identifies β−.
INDEPENDENT PRACTICE
Predicting the decay mode
A nuclide has significantly more neutrons than its stable neighbours. Predict its likely decay mode, and what the decay does to its neutron and proton counts.
Show the working
Neutron-rich nuclei correct themselves by β− decay, turning one neutron into a proton.
N falls by one, Z rises by one, and the nuclide steps diagonally towards the stable band. The N against Z map in the nuclear unit draws that step in exactly those terms.
ASSESSMENT FOCUS
- The strong-force numbers are quotable content. Attraction out to about 3 fm, repulsion inside about 0.5 fm. Range questions want both, and they want the word “nucleons”, because the force acts on protons and neutrons alike.
- Why does the nucleus not collapse? The very-short-range repulsion. Why does it not fly apart? The strong attraction beats the electrostatic repulsion. Two questions, two different halves of the same graph.
- Decay equations are marked on the balancing. A and Z must each sum equally across the arrow, with the beta electron counted as A = 0 and Z = −1.
- Alpha takes A down by 4 and Z down by 2. Beta-minus leaves A alone and takes Z up by 1. Name the daughter element as well as writing the numbers.
- The neutrino argument is an energy-conservation argument, and the order matters. Continuous electron spectrum, fixed decay energy, therefore an undetected particle takes the rest.
CHECK YOURSELF
Write the decay equation for radium-226 (Z = 88) undergoing alpha decay to radon (Rn), and check both balances.
Show a hint
The alpha particle takes four nucleons, two of them protons.
Show the answer
226Ra → 222Rn + 4He.
Nucleons balance, 226 = 222 + 4. Protons balance, 88 = 86 + 2, so radon sits at Z = 86.
Both totals hold, and the element changed because Z changed.
The strong force attracts out to 3 fm and repels inside 0.5 fm.
Every decay balances A and Z exactly.
The antineutrino exists because the beta spectrum is continuous.
